Adaptors and Reducers
Given that our Adaptors and Reducers are utilized in industrial, hazardous housing, housing, marine, and machine applications, it is ideal to insert a wide variety of cable glands of various sorts and sizes.
Our versatile and adjustable adapters and reducers are used to minimize installation time frames and boost installation efficiency when there is a conflict between the size and type of cable glands or various thread sizes rather than altering the size of existing tool holes.
This may be utilized to increase or decrease size in the very back and front thread and is available throughout the male and female thread.
We provide this in a variety of sizes and thread types, including metric, PG, NPT, and BSP, in all permanent non-metallic materials.
The connecting device or cable gland is more than or nearly as big as the conduit entrance thread of the enclosure, adapters are employed.
Then a connecting device or cable gland is smaller than the conduit entrance to an enclosure, reducers are used.
Features & Benefits Adaptors and Reducers
- international Ex approvals
• IP66, IP68, CSA Enclosure Type (NEMA) 4X, 6P
• Various threadforms/materials available. - • Used to change size/threadform of connection device
• Maintains Ex certification while matching threadforms
Specification Adaptors and Reducers
General
| Application | Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22 and Mining Applications |
| Ingress Protection | IP66 to IEC/EN 60529 |
| Material | Manufactured in Brass (Standard), Nickel Plated Brass or 316L Stainless Steel |
| Operating Temperature | -60°C to +200 °C |
| Series | Fittings for Hazardous Areas |
Certifications and Compliance
| Certification |
|
| Hazardous Rating(s) |
|
| Industry Standard(s) |
|

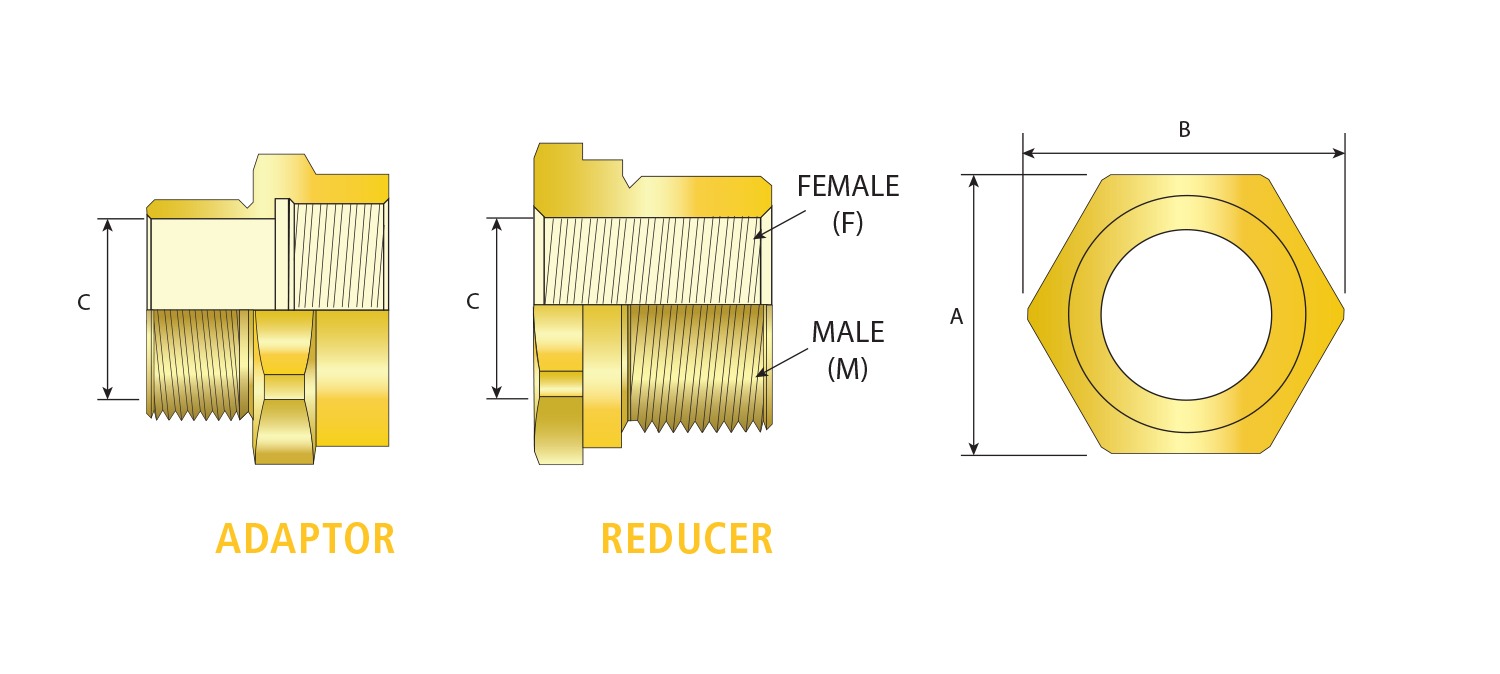

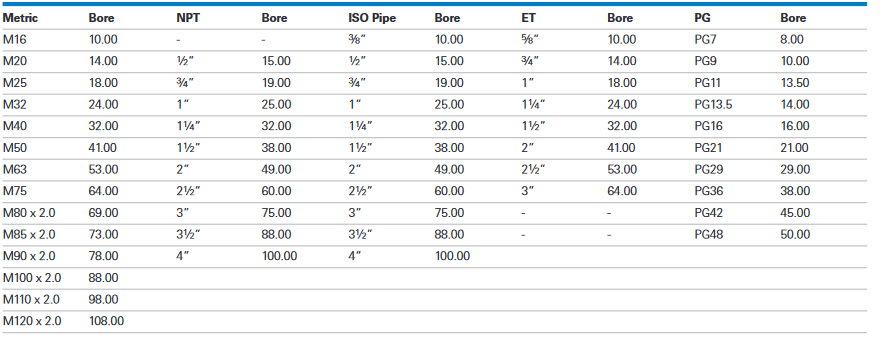

Dimension / Size Chart:
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
