sma connector male right angle

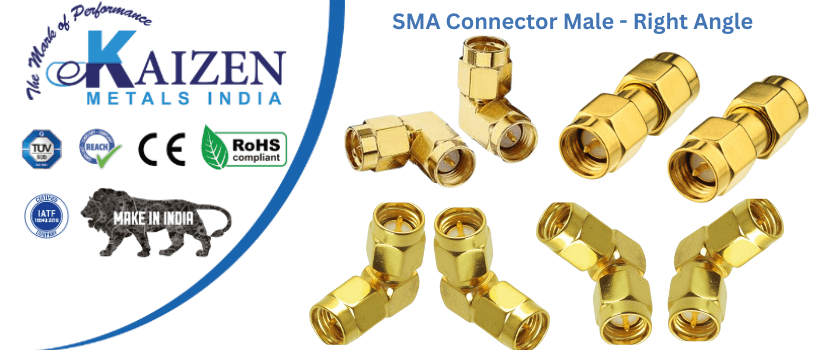

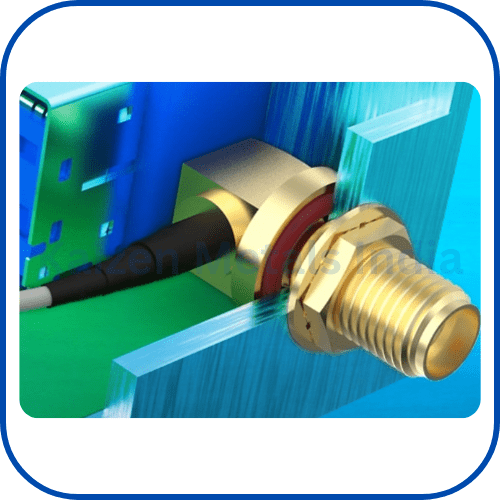

SMA Connector Male - Right Angle

An SMA Connector Male – Right Angle is a type of coaxial RF connector designed for applications where space is limited and a 90° cable exit is required. Here’s a quick breakdown:

Key Features SMA Connector Male

  • Type: SMA (SubMiniature version A)

  • Gender: Male (with a center pin)

  • Angle: Right Angle (90° bend for tight spaces)

  • Impedance: 50 Ω (standard for SMA)

  • Frequency Range: DC up to ~18 GHz (depending on quality)

  • Applications: RF communication, antennas, GPS, Wi-Fi modules, test equipment, PCB assemblies

Uses

  • Ideal for PCB mounting or cable assemblies where straight connectors won’t fit.

  • Common in wireless devices, routers, and test setups.

  • Ensures secure connection with threaded coupling mechanism.

General Information

  • Connector Type: SMA (SubMiniature Version A)

  • Orientation: Right Angle (90°)

  • Gender: Male (with center pin)

  • Mounting Style: Cable mount / PCB mount (varies by model)

  • Coupling Mechanism: Threaded (1/4”-36 UNS)

Electrical Specifications

  • p to 12.4 GHz), ≤ 1.5 (up to 18 GHz)

  • Dielectric Withstanding Voltage: ≥ 1000 V RMS (at sea level)

  • Insulation Resistance: ≥ 5000 MΩ

  • Contact Resistance:

    • Center Conductor: ≤ 5 mΩ

    • Outer Conductor: ≤ 2 mΩ

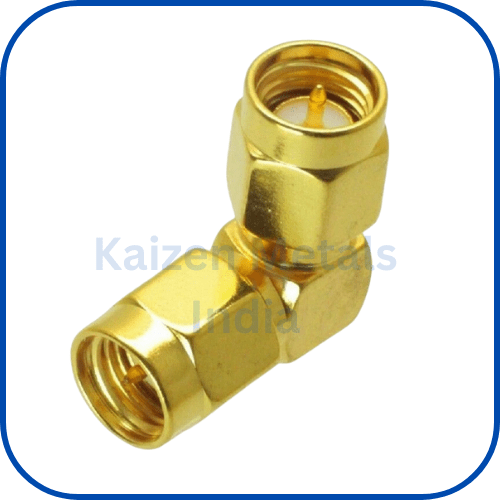

sma connector male right angle ​

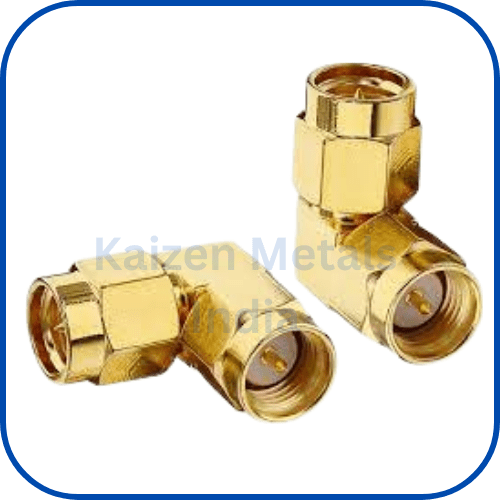

sma connector male right angle ​
sma connector male right angle ​

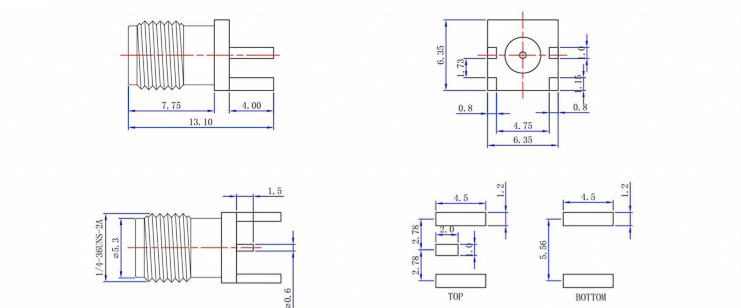

Mechanical Specifications of SMA Connector Male - Right Angle

  • Interface Standard: MIL-STD-348

  • Durability: ≥ 500 mating cycles

  • Coupling Nut Torque: 0.8–1.1 N·m

  • Body Style: Right angle for space-constrained applications

Material & Finish

  • Body: Brass or Stainless Steel

  • Plating: Gold or Nickel (depending on version)

  • Center Contact: Gold-plated brass/beryllium copper

  • Insulator: PTFE (low-loss dielectric)

  • Gasket/Sealing: Silicone rubber (in some waterproof models)

sma connector male right angle ​

Environmental

  • Operating Temperature: –65 °C to +165 °C

  • Vibration: MIL-STD-202, Method 204

  • Humidity: MIL-STD-202, Method 106

  • Corrosion (Salt Spray): MIL-STD-202, Method 101

sma connector male right angle ​

Typical Applications

  • RF/Microwave communications

  • GPS, Wi-Fi, Bluetooth, LTE antennas

  • Test and measurement equipment

  • Radar and aerospace systems

  • PCB and cable assemblies

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.

Any kind of SMA Connector Male – Right Angle can be developed and supplied exactly as per customer specifications.
