Brass Nuts
Brass Nuts are precision-machined fastening components manufactured from high-grade brass alloys to deliver excellent mechanical strength, corrosion resistance, and long-lasting performance. Known for their anti-rust, non-magnetic, and electrically conductive properties, Brass Nuts are widely used across electrical systems, plumbing, instrumentation, automotive fittings, machinery, and general engineering applications.
Their superior machinability and aesthetic finish make them ideal for applications requiring both functional reliability and visual appeal. Brass Nuts maintain dimensional stability under high temperatures and resist chemical exposure, making them suitable for indoor, outdoor, and industrial environments.

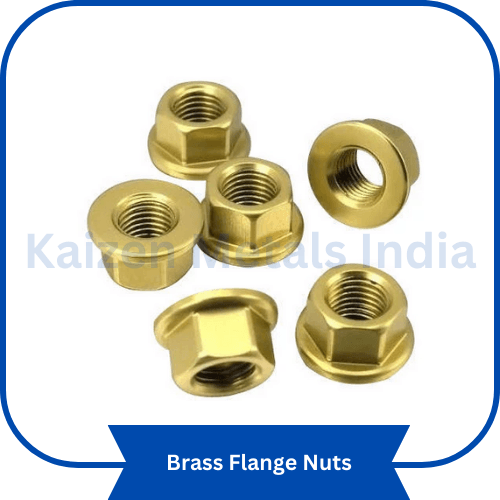

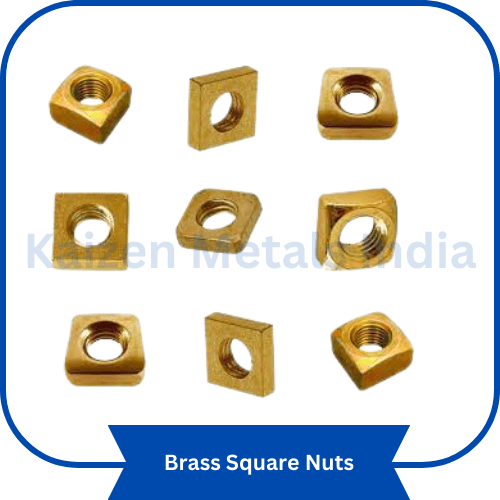

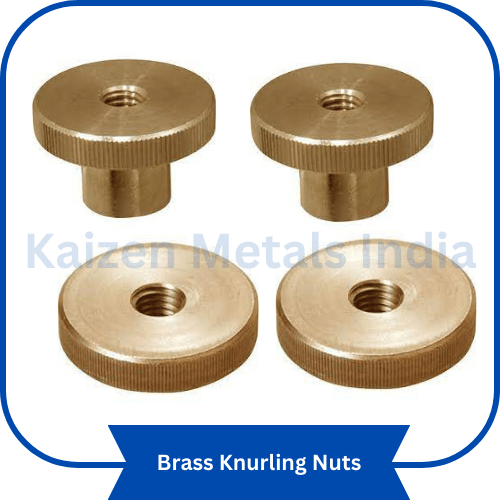

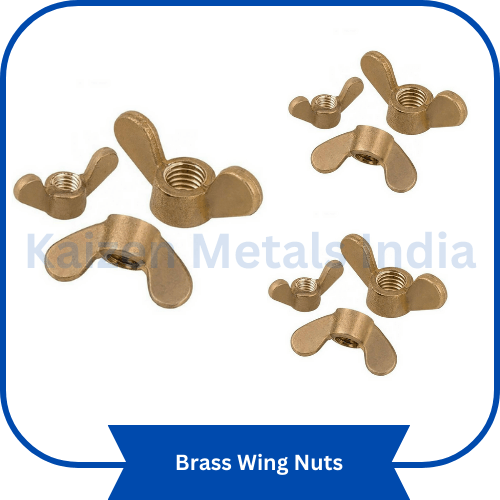

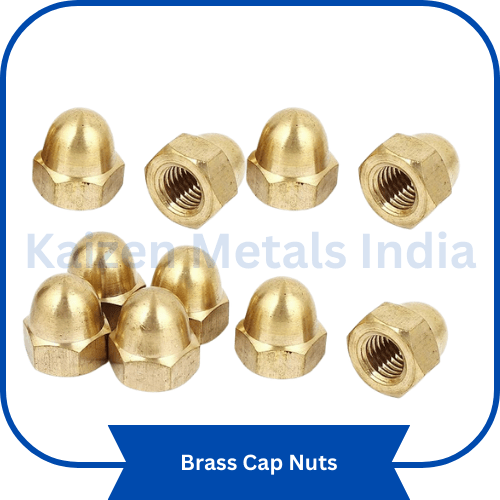

Available in a wide range of types—Hex Nuts, Dome Nuts, Lock Nuts, Wing Nuts, Check Nuts, Square Nuts, and Custom CNC Machined Nuts—they offer universal compatibility with brass, steel, and stainless-steel bolts.
Brass Nuts of Key Features
High-strength brass alloy (IS 319 / BS 2874 / CZ121)
Excellent corrosion & chemical resistance
Non-magnetic and electrically conductive
Precision threads for smooth assembly
Temperature and vibration resistant
Available in metric & UNC/UNF threads
Ideal for electrical, plumbing, and mechanical uses
Brass Nuts of Key Features
Brass Nuts
Brass Hex Nuts
Brass Fasteners
Brass Lock Nuts
Brass Dome Nuts
Brass Nut Manufacturer
Brass hardware nuts
Brass machine nuts
Brass fixing nuts
Brass threaded nuts
Solid brass nuts
Brass nut and bolt set
High-strength brass nuts for electrical applications
Corrosion-resistant brass hex nuts for plumbing
Precision machined brass nuts for industrial use
Best brass nuts for automotive and machinery
Brass engineering fasteners for long-term durability
Brass Nuts Product Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Brass (IS 319 Grade I / II, BS 2874 CZ121, CZ122) |
| Nut Types Available | Hex Nuts, Dome Nuts, Lock Nuts, Wing Nuts, Square Nuts, Check Nuts, Custom CNC Nuts |
| Thread Standard | Metric (M2–M20), UNC, UNF, BSW |
| Thread Tolerance | 6H / Class 2B |
| Finish | Natural Brass / Polished / Nickel Plated |
| Hardness | 70–90 HV |
| Tensile Strength | 350–500 MPa (grade dependent) |
| Operating Temperature | -40°C to +200°C |
| Corrosion Resistance | Excellent in dry, humid, and mild chemical environments |
| Applications | Electrical fittings, plumbing, hardware, instrumentation, automotive, mechanical assemblies |
Detailed Size Chart
| Thread Size | Width Across Flats (A/F) | Width Across Corners | Nut Height (H) |
| M2 | 4 mm | 4.6 mm | 1.6 mm |
| M2.5 | 5 mm | 5.5 mm | 2.0 mm |
| M3 | 5.5 mm | 6.0 mm | 2.4 mm |
| M4 | 7 mm | 7.7 mm | 3.2 mm |
| M5 | 8 mm | 8.8 mm | 4.0 mm |
| M6 | 10 mm | 11.1 mm | 5.0 mm |
| M8 | 13 mm | 14.4 mm | 6.5 mm |
| M10 | 17 mm | 19.1 mm | 8.0 mm |
| M12 | 19 mm | 21.1 mm | 10.0 mm |
| M14 | 22 mm | 24.5 mm | 11.0 mm |
| M16 | 24 mm | 26.8 mm | 13.0 mm |
| M18 | 27 mm | 30.0 mm | 15.0 mm |
| M20 | 30 mm | 33.1 mm | 16.0 mm |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
