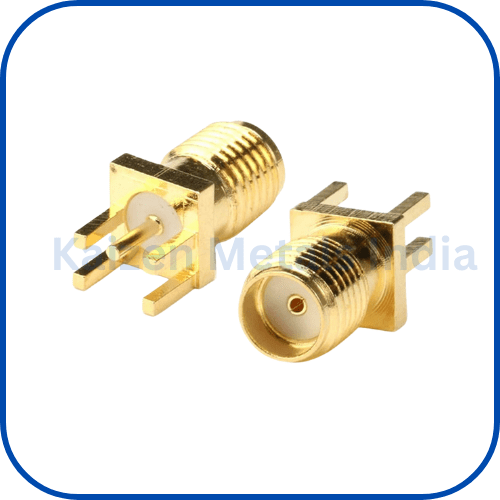

SMA Connector Female PCB Edge – Straight
The SMA Connector Female PCB Edge – Straight is a high-quality, reliable connector designed for printed circuit boards (PCBs) with a standard 1.6mm thickness. Featuring a female interface, it enables secure and easy connections with SMA male connectors commonly used in RF, wireless, and telecommunications applications.
Its straight configuration ensures a direct, stable connection between the PCB and the SMA connector, while the PCB edge-mount design offers flexibility and convenience in PCB layout and assembly. Compact and efficient, this connector is an ideal choice for projects that require a dependable, space-saving RF solution for PCBs with 1.6mm thickness.
Ideal Applications
SMA Connector Female PCB Edge Straight
straight SMA female PCB connector
SMA female edge mount connector
SMA PCB edge female connector
50 ohm SMA female PCB mount straight connector
SMA female PCB edge RF connector
gold-plated SMA female straight PCB connector
SMA female PCB mount connector for wireless modules
SMA female PCB edge straight connector for RF and wireless applications
SMA connector female PCB mount straight for GPS, Wi-Fi, LTE devices
high-frequency SMA female PCB edge straight connector up to 18 GHz
durable SMA female PCB edge connector for IoT and RF systems
Key Features & Benefits

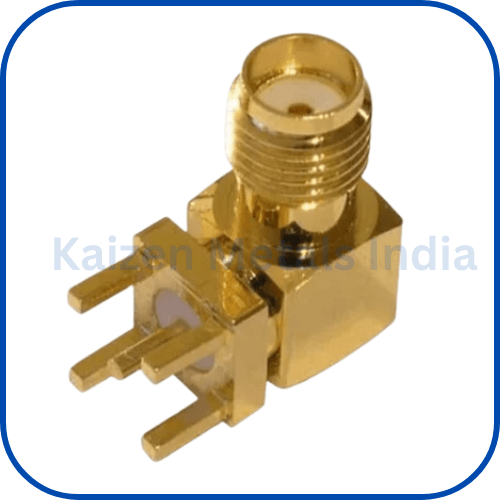

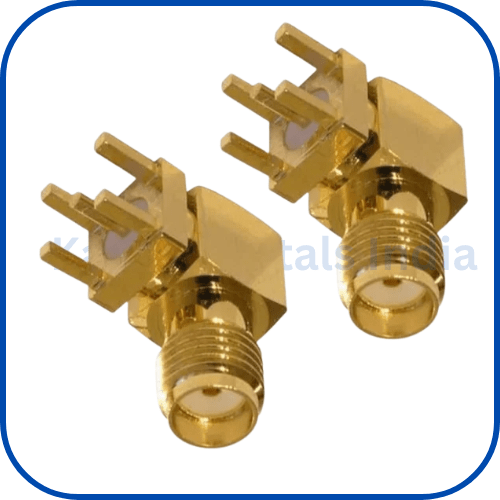

Right Angle Design – Perfect for space-constrained environments where a straight connector won’t fit. Simplifies prototyping and installation in compact devices.
Secure Antenna Compatibility – Specifically engineered to mate seamlessly with standard SMA type antennas, ensuring a flawless fit and stable connection.
Reliable Signal Performance – Female socket contact designed for precise alignment, guaranteeing consistent signal transmission with minimal loss.
Durable Construction – Built with high-quality materials and superior craftsmanship, this connector offers long-lasting performance even under frequent use.
Versatile Applications – Ideal for cellular communication, GPS navigation, Wi-Fi, IoT devices, test equipment, and other RF/microwave systems.
General Information
Connector Type: SMA (SubMiniature Version A)
Orientation: Right Angle (90°)
Gender: Female (threaded receptacle with socket contact)
Mounting Style: Cable mount / PCB mount (depending on version)
Coupling Mechanism: Threaded, 1/4”-36 UNS
Electrical Specifications
Impedance: 50 Ω
Frequency Range: DC to 18 GHz (precision versions up to 26.5 GHz)
VSWR:
≤ 1.3 (DC–12.4 GHz)
≤ 1.5 (up to 18 GHz)
Dielectric Withstanding Voltage: ≥ 1000 V RMS (at sea level)
Insulation Resistance: ≥ 5000 MΩ
Contact Resistance:
Center Contact: ≤ 6 mΩ
Outer Contact: ≤ 2 mΩ
Mechanical Specifications
Standard Compliance: MIL-STD-348 interface
Durability: ≥ 500 mating cycles
Coupling Nut Torque: 0.8–1.1 N·m
Body Style: Right angle, compact design for limited spaces
Material & Finish
Body: Brass or Stainless Steel
Plating: Gold or Nickel (corrosion-resistant)
Center Contact: Gold-plated brass or beryllium copper
Insulator: PTFE (low-loss dielectric)
Sealing/Gasket: Silicone rubber (in waterproof variants)
Environmental
Operating Temperature: –65 °C to +165 °C
Vibration: MIL-STD-202, Method 204
Humidity: MIL-STD-202, Method 106
Corrosion Resistance: MIL-STD-202, Method 101 (Salt Spray Test)
Applications
RF/Microwave communication devices
GPS, LTE, Wi-Fi, and Bluetooth antennas
Test & measurement equipment
PCB and cable assemblies
Aerospace, defense, and telecom systems
