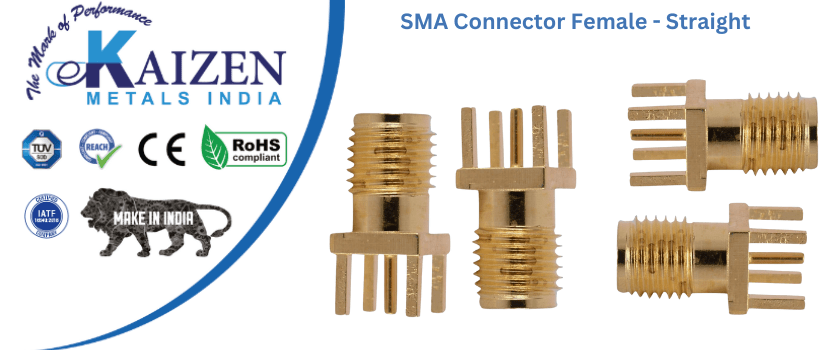

SMA Connector Female – Straight

The SMA Connector Female – Straight is an essential RF component for applications requiring a reliable, high-performance antenna connection. Perfect for cellular devices, GPS modules, Wi-Fi, IoT devices, and RF communication systems, this connector ensures stable and efficient signal transmission.

Ideal Applications

  • Cellular and GPS devices

  • Wi-Fi, LTE, and IoT modules

  • PCB and RF assemblies

  • Wireless communication prototypes and projects

Key Features & Benefits

  • Straight Design – Ideal for standard PCB and cable connections where space is not restricted.

  • Secure Antenna Compatibility – Precisely engineered to mate with standard SMA male antennas, ensuring flawless connection and minimal signal loss.

  • Reliable Signal Transmission – Female socket contact provides consistent RF performance across DC to 18 GHz frequency ranges.

  • Durable Construction – Made with premium materials and precision craftsmanship for long-lasting use.

  • Versatile Applications – Suitable for wireless communication modules, GPS, LTE, Wi-Fi, test equipment, and PCB assemblies.

General Information

  • Connector Type: SMA (SubMiniature Version A)

  • Orientation: Right Angle (90°)

  • Gender: Female (threaded receptacle with socket contact)

  • Mounting Style: Cable mount / PCB mount (depending on version)

  • Coupling Mechanism: Threaded, 1/4”-36 UNS

Electrical Specifications of SMA Connector Female – Straight

  • Impedance: 50 Ω

  • Frequency Range: DC to 18 GHz (precision versions up to 26.5 GHz)

  • VSWR:

    • ≤ 1.3 (DC–12.4 GHz)

    • ≤ 1.5 (up to 18 GHz)

  • Dielectric Withstanding Voltage: ≥ 1000 V RMS (at sea level)

  • Insulation Resistance: ≥ 5000 MΩ

  • Contact Resistance:

    • Center Contact: ≤ 6 mΩ

    • Outer Contact: ≤ 2 mΩ

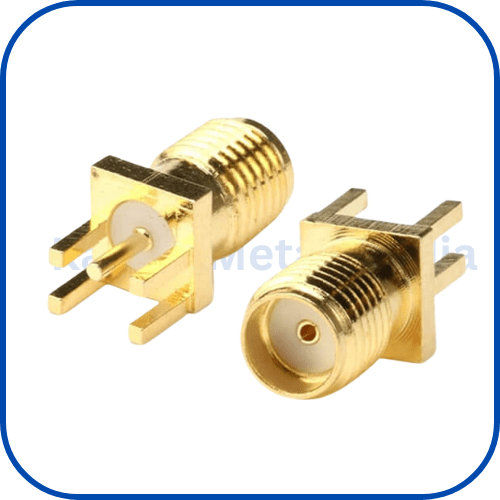

sma connector female straight

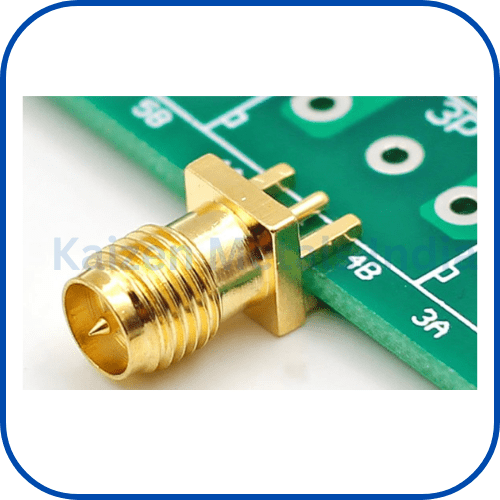

sma connector female straight

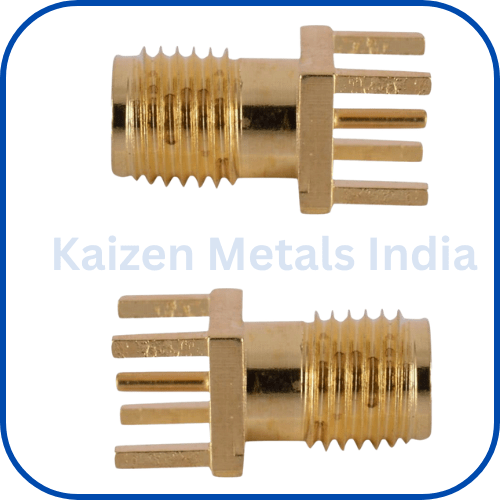

sma connector female straight

SMA Connector Female – Straight Mechanical Specifications

  • Standard Compliance: MIL-STD-348 interface

  • Durability: ≥ 500 mating cycles

  • Coupling Nut Torque: 0.8–1.1 N·m

  • Body Style: Right angle, compact design for limited spaces

Material & Finish SMA Connector Female

  • Body: Brass or Stainless Steel

  • Plating: Gold or Nickel (corrosion-resistant)

  • Center Contact: Gold-plated brass or beryllium copper

  • Insulator: PTFE (low-loss dielectric)

  • Sealing/Gasket: Silicone rubber (in waterproof variants)

Environmental

  • Operating Temperature: –65 °C to +165 °C

  • Vibration: MIL-STD-202, Method 204

  • Humidity: MIL-STD-202, Method 106

  • Corrosion Resistance: MIL-STD-202, Method 101 (Salt Spray Test)

Applications of SMA Connector Female – Straight

  • RF/Microwave communication devices

  • GPS, LTE, Wi-Fi, and Bluetooth antennas

  • Test & measurement equipment

  • PCB and cable assemblies

  • Aerospace, defense, and telecom systems

  • SMA Connector Female Straight
  • straight SMA female connector
  • SMA female RF connector straight
  • SMA straight jack female
  • 50 ohm SMA female straight connector
  • SMA female PCB mount straight
  • SMA coax straight female connector
  • gold-plated SMA straight female connector
  • SMA connector female straight for RF and wireless applications
  • SMA female straight connector for antenna and PCB assemblies
  • high-frequency SMA female straight connector up to 18 GHz
  • durable SMA female straight connector for GPS, Wi-Fi, and IoT devices

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.

Any kind of SMA Connector Female – Straight can be developed and supplied exactly as per customer specifications.
